Sleeve-Based Gear-Driven CI Flexographic Press

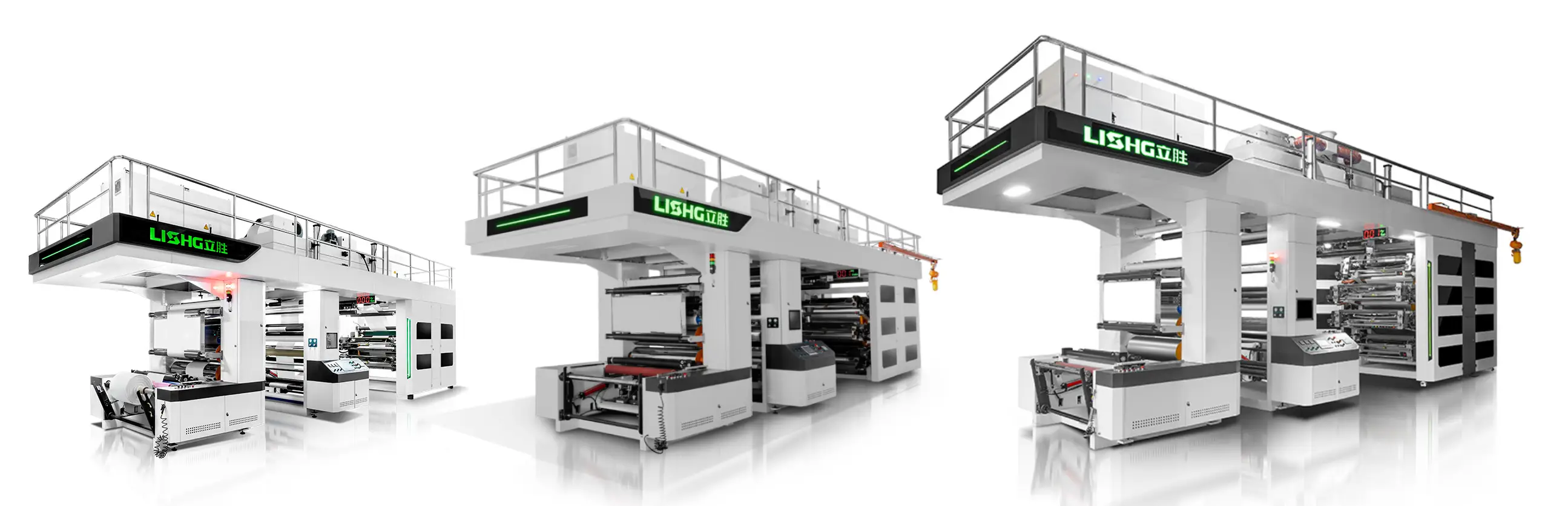

Sleeve Gear Driven CI Flexographic Printing Machine for Flexible Packaging
This central impression (CI) flexographic printing system combines a shared impression drum with sleeve-mounted printing plates and industrial gear-driven transmission—delivering medium-high registration precision, faster job changeovers, and stable multi-color output on flexible packaging webs. Sleeve plates slide onto mandrels for quick mount and demount, reducing makeready time compared with conventional fixed-plate CI systems while preserving the register stability CI architecture is known for.
Machine Architecture
Sleeve CI Platform Built for Faster Changeovers
Four integrated subsystems—sleeve plate mounting, gear-driven transmission, quick-change tooling, and CI drum web control—work together to shorten job transitions while maintaining register on film, paper, and laminate structures.
Sleeve Plate System
Printing plates are mounted on lightweight polymer or composite sleeves that slide onto fixed mandrels at each color station. The sleeve format eliminates traditional plate cylinder inventory for every repeat length and supports pre-mounted sleeves prepared offline in the prepress area.
- Polymer or composite sleeve construction
- Fixed mandrel mounting at each CI station
- Reduced cylinder storage vs fixed-plate CI
- Compatible with standard flexo plate imaging workflows
Gear-Driven Transmission
Industrial gear-driven transmission synchronizes all color stations around the central impression drum with predictable mechanical repeat accuracy. The proven gear layout delivers stable torque at production speed and supports medium-high precision graphics without the complexity of full gearless servo CI platforms.
- Gear-driven CI main transmission
- Synchronized multi-color stations on shared drum
- Stable mechanical repeat at rated speed
- Designed for continuous flexible packaging production
Quick-Change Plate Mounting
Sleeve-based mounting dramatically reduces plate change time versus bolt-on fixed cylinders. Operators slide pre-imaged sleeves onto mandrels, lock in place, and return to production—ideal for converters running frequent SKU changes and short-to-medium batch flexible packaging jobs.
- Slide-on sleeve mounting and demounting
- Offline sleeve preparation in prepress
- Faster makeready between job repeats
- Reduced press-side plate handling time
CI Drum Web Stability
The central impression drum supports the web through all color stations in a single pass, minimizing stretch variation and register drift on thin films. Integrated tension zones before and after the CI section protect color-to-color alignment during acceleration, splicing, and sustained high-speed runs.
- Single-pass multi-color CI printing
- Reduced web stretch vs sequential stack units
- Tension control upstream and downstream of CI drum
- Stable register on 12–250 µm substrates
Technical Specifications
Configure Your Platform
Select color count and web width to preview typical specifications. Final configuration is quoted to your substrate, speed target, and finishing scope.
Sleeve CI · 6-color · 1000 mm
- Machine type
- Central impression (CI) flexographic printing machine
- Structure
- Sleeve-mounted plates on shared CI drum
- Transmission
- Gear-driven CI roll-to-roll system
- Printing mode
- Continuous roll-to-roll flexographic printing
- Color options
- 6 colors
- Print width
- 1000 mm
- Print repeat
- Adjustable via sleeve selection and registration system
- Max speed
- 250 – 300 m/min (stable production 180 – 260 m/min)
- Registration
- ±0.10 – 0.20 mm
- Substrate thickness
- 12 – 250 microns
- Ink system
- Chamber doctor blade with per-station ink supply
- Unwind / rewind
- Max roll diameter 1000 – 1200 mm · Tension-controlled rewind
- Machine length
- Approx. 12 – 16 m
- Machine width
- Approx. 3.5 – 5.0 m
- Machine height
- Approx. 3.2 – 4.2 m
- Machine weight
- Approx. 18 – 28 t
Material Compatibility
BOPP, OCPP, CPP, PE, PET, pearlized film, paper, kraft paper, and laminate structures commonly used in food, personal care, and industrial flexible packaging.
Printing Performance
Consistent multi-color register at up to 280 m/min with sleeve quick-change capability—suited for medium-high quality graphics and frequent job rotation.
Drying System
Inter-station and final drying modules sized for CI line speeds. Reinforced drying and solvent-management options available for heavier ink laydown.
Production Workflow
From Sleeve Prep to Finished Roll
Offline Sleeve Preparation
Plates are imaged and mounted on sleeves in prepress, then staged at the press for fast slide-on installation.
Unwind & Splice
Roll feeding with manual or automatic unwind, splice detection, and diameter monitoring up to 1200 mm.
Web Tension Control
Closed-loop tension with load-cell or dancer feedback stabilizes the web before the CI drum.
CI Multi-Color Printing
All colors print in one pass around the central impression drum with gear-driven synchronization.
Inter-station Drying
Per-station drying stabilizes ink before subsequent colors and protects register on thin films.
Rewind & Changeover
Finished rolls are wound under controlled tension; sleeve swap enables the next job with minimal press downtime.
Optional Components
Standard Scope & Upgrade Paths
Base configuration includes gear-driven CI printing stations, sleeve mandrel mounting, chamber doctor blade ink systems, inter-station drying, unwind / rewind, and registration control suitable for flexible packaging production.
- Sleeve plate mounting on all color stations
- Gear-driven CI transmission
- Registration and color control system
- Inter-station drying and exhaust
Optional assisted sleeve loading reduces operator effort and further shortens changeover time on wide-web configurations and heavier sleeve formats.
Upgraded drying modules support sustained output in the 250 – 300 m/min range and for heavier ink laydown on high-opacity white and process color builds.
Optional corona or plasma treatment, automatic unwind, and splice preparation can be integrated upstream of the CI section based on substrate adhesion requirements.
Downstream slitting, web inspection, and register mark detection modules can be integrated for converters delivering finished rolls directly to pouch or bag-making lines.
Application Industries
Built for Flexible Packaging at CI Quality
Food & Snack Packaging
Laminated snack, confectionery, and frozen food films requiring tight register and frequent SKU rotation.
Personal Care & Pouches
Stand-up pouches, sachets, and personal care laminates with multi-color process graphics.
Industrial & Courier Films
Industrial wrapping, courier bags, and medium-to-long run flexible packaging with CI register stability.
System Advantages
Sleeve CI vs Fixed-Plate CI Flexo
| Factor | Sleeve Gear-Driven CI | Fixed-Plate CI Flexo |
|---|---|---|
| Plate changeover | Slide-on sleeve swap, offline prep | Bolt-on cylinder change, longer makeready |
| Cylinder inventory | Sleeves per repeat, shared mandrels | Full plate cylinder per repeat length |
| Job flexibility | Strong for frequent SKU changes | Better suited to long, stable runs |
| Registration | ±0.10 – 0.20 mm CI stability | Comparable CI register on fixed cylinders |
| Investment profile | Mid-range CI with faster ROI on changeovers | Higher cylinder capital per repeat |
| Best fit | Medium-high precision, multi-SKU packaging | Long-run premium graphics at one repeat |
- Faster job change — sleeve quick-mount reduces makeready versus fixed-plate CI cylinder swaps.
- CI register stability — shared impression drum delivers medium-high precision on thin flexible films.
- Lower cylinder overhead — sleeves replace full plate cylinder inventory for each repeat length.
- Proven gear drive — industrial transmission supports stable 180 – 260 m/min production without gearless complexity.
FAQ
Common Questions About Sleeve Gear-Driven CI Flexo
It is a central impression flexo press where printing plates are mounted on lightweight sleeves that slide onto fixed mandrels at each color station. All colors print in one pass around a shared impression drum, combining CI register stability with faster sleeve changeovers.
Both architectures use a central impression drum for multi-color register. Sleeve CI reduces changeover time and cylinder inventory by swapping pre-mounted sleeves instead of full plate cylinders—making it better suited to converters with frequent job changes and multiple repeat lengths.
Maximum rated speed is up to 280 m/min with a typical operating window of 250 – 300 m/min depending on configuration. Stable daily production is typically 180 – 260 m/min on common flexible packaging substrates and ink sets.
This platform supports BOPP, OCPP, CPP, PE, PET, pearlized film, paper, kraft paper, and laminate structures from 12 to 250 microns, subject to final process validation and drying configuration.
Choose sleeve CI when you need CI-level register, higher stable speeds, and multi-color quality on flexible packaging—especially if frequent sleeve changeovers justify the investment over stack flexo. Stack remains the economical choice for simpler graphics and lower capital layout.
